Liquid Packaging Center (overview of facilities)Overview of facilities

The Liquid Packaging Center is equipped with facilities for conducting a range of verification tests related to liquid paper containers. It performs filling tests for customers' new products, verification tests on new functional material, and so on.
It also conducts filling machine maintenance workshops for customers' machine operators.
Representative items of equipment at the Liquid Packaging Center are introduced below.

UHT equipment

Overview of UHT equipment:
Sterilization temperature (maximum): 140°C
UHT sterilization capacity: 800L/h
Holding tubes (g types): 2, 3, 4, 5, 7.5, 10, 20, 30 sec

NP-PAK filling machine

UPN-SE65
Capacity: 6,500 packs/hour
Size: Regular: 500 ml, 1000 ml; NP-PAK+R: 420 ml, 920 ml

FUJI-PAK filling machine

UP-FUJI-MA90
Capacity: 9,000 packs/hour
Size: Slim: 125 ml, 200 ml

UP-FUJI-MA60N (for aluminum-free packs)
Capacity: 6,000 packs/hour
Size: Slim: 200 ml

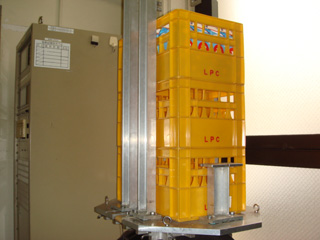

Vibration testing machine
For simulation of testing in actual transport, we conduct pack durability testing that subjects filled packs to vertical vibration.

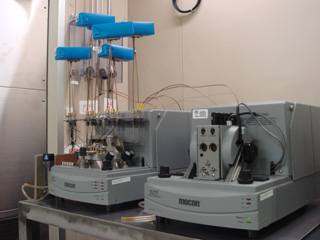

MOCON oxygen permeation rate measurement device
We measure the oxygen permeation rate of material and packs to verify barrier properties.
